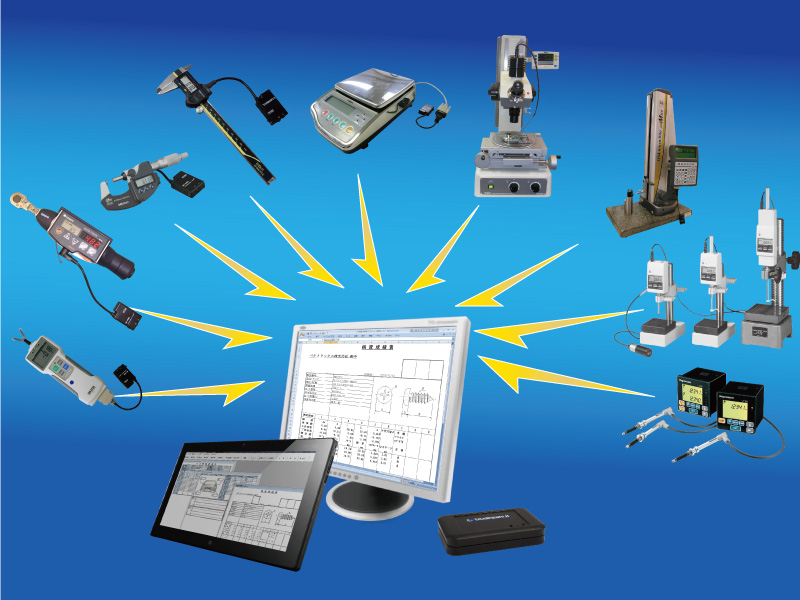

“TelemeasureII” is a wireless measured data importing system consisting of handy Transmitter and Data receiver.
The transmitter is designed to transmit measured data received from digital measuring devices by worldwide common frequency 2.4GHz band. The Data receiver forwards the measured data to PC after receiving from transmitters.
TelemeasureII & QC PRO EX demonstration movie:
TelemeasureII Data Receiver “DR-200U/R/D”
- Transmission distance：50m (depends on surrounding condition)
- Strengthen collision avoidance of radio wave
- 128 DR-200U/R/D’s can be used at same time.
- Two-way communication (This function is unavailable in some countries.)
- Worldwide common frequency
Specifications Receiving frequency:2.4GHz(worldwide common frequency) Transmission distance:50m(within sight) Channel number：128 PC output: DR-200U；USB DR-200R；RS232C DR-200D；Digimatic/USB Power supply: DR-200U；USB Bus Power DR-200R；AC100V～240V(DC9V) DR-200D；AC100V～240V/USB Bus Power Size:116.5D×72.7W×25H mm Weight: DR-200U/DR-200D；82g DR-200R；91g
TelemeasureII Data Receiver “DR-200mini”
- Super-small compact design Suitable for notebook or Tablet PC
- Transmission distance：20m(depends on surrounding condition)
- Reasonable price
※Available software : QCPROEX V4、QCPROMX、QCPRO V8
Specifications Receiving frequency：2.4GHz（Worldwide common frequency） Transmission distance：20m (within sight) Channel number：128 PC output：USB(USB cable attached) Power supply：USB Bus Power Size:W36×D53×H11mm Weight：20g
TelemeasureII Transmitter “TXG Series”
By using digital display of measuring instrument, only pushing buttons on Transmitter,
easy to set following functions.(Patent Pending)
- Transmitter ID No. from 0 to 99
- Set receiver (Channel) No. for Transmitter from 1 to 128
*Receiver No. for Data receiver must be set by PC. - Two-way communication Data trigger function(max. 16 Transmitters) Reception acknowledgment or not (Buzzer sound or not)
(Note)This function is unavailable in China. - Interval Transmission from 0.4sec. till 60 mim.
Specifications Transmission frequency:2.4GHz (worldwide common frequency) Output power:1mW(Specified low power) Channel number：128 Input signal:Digimatic or RS-232C Power source:Coin battery CR2032 Size(except connector): 32D×52W×14H mm Weight(except connector): 25.5g(Include battery)
Major Model Name of Transmitter & Applied Measuring Equip.
| Manufacturer | Measuring Instruments | Connector | Model Name |
|---|---|---|---|

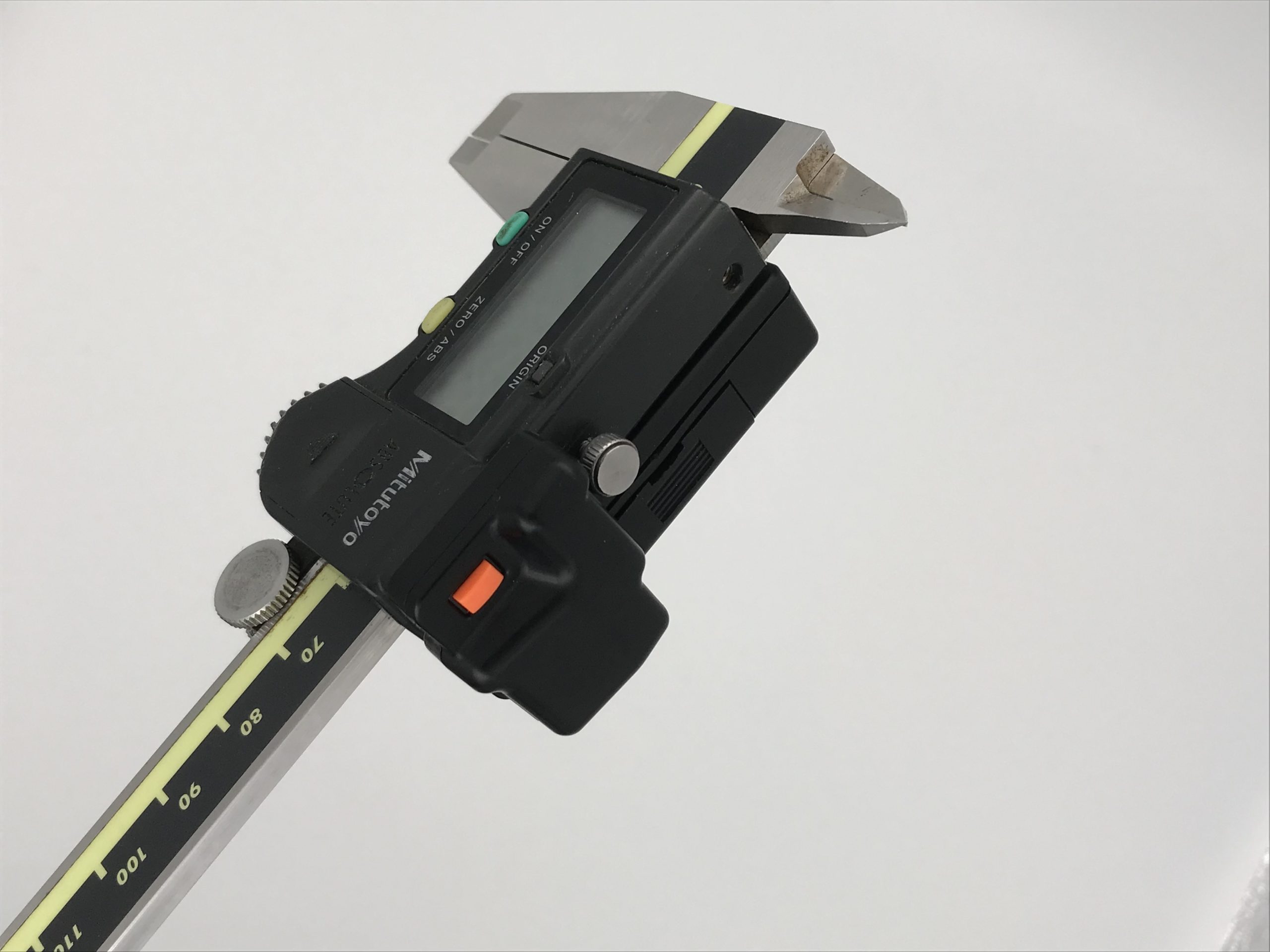

| Mitutoyo | Caliper | Flat 5pin | TXG-KCX/KCXQ* Cassette type: TXG-KCX-CC TXG-KCQ-CC*  Available Digimatic micrometer/caliper for Cassete type transmitter |
| Indicator | TXG-KCS/KCQ* | ||
| Height Gauge | TXG-KCM/KCMQ* | ||
| Mitutoyo | Micrometer | Round 6pin | TXG-KA/KAQ* |
| Mitutoyo | Indicator | Flat 10pin | TXG-KE/KEQ* |

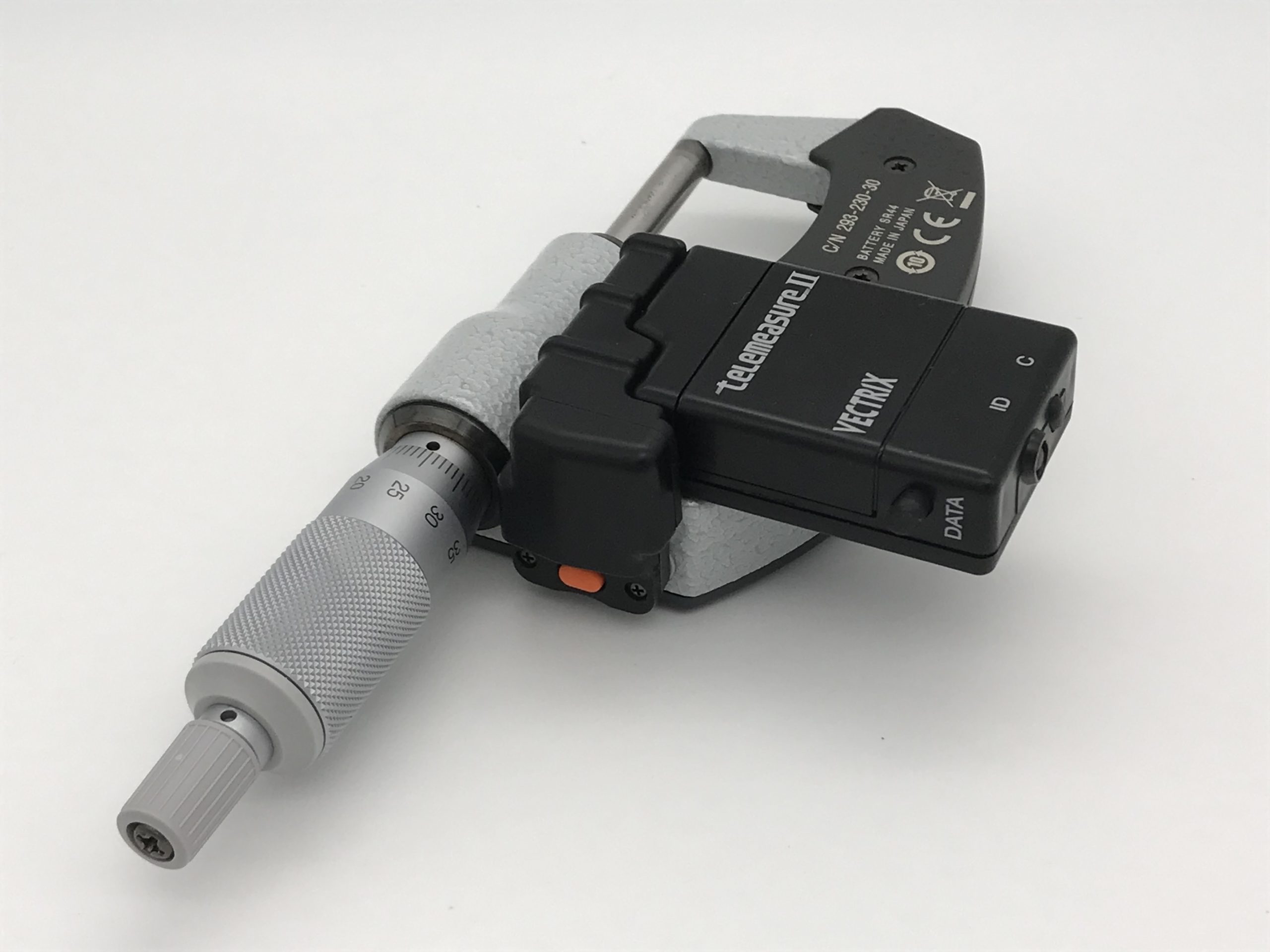

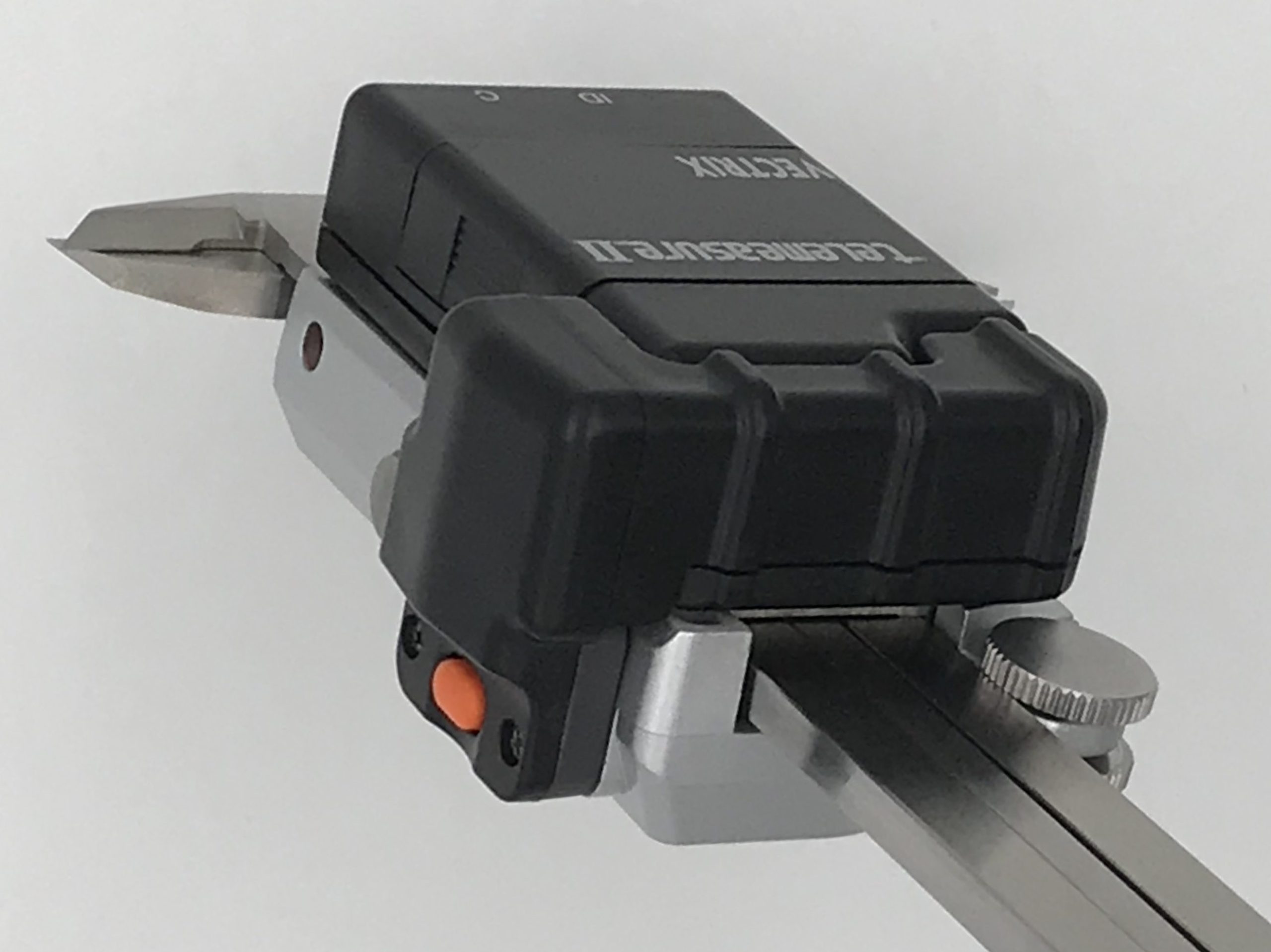

| Mitutoyo | Coolant proof Caliper/Micrometer | Square 5pin | Cable/5pin Right angle TXG-KWX/KWQ* Cable/5pin Straight TXG-KWXS/KWSQ* Cassette type: TXG-KWX-CC TXG-KWQ-CC* (for caliper)  TXG-KWX-CM TXG-KWQ-CM* (for micrometer)  Available Digimatic micrometer/caliper for Cassete type transmitter |
| Mitutoyo | Coolant proof Indicator | Square 8pin | TXG-KNX/KNQ* |
| Nikon | Counter | Special 20pin | TXG-NDQ* |
| Tonichi | Torque Wrench | Special 8pin | TXG-RST |
| RS-232C output instruments Applicable measuring instruments | Dsub 9pin | TXG-RS/RSQ* ⇒ Type of transmitter transmitting data by button on measuring device consumes much battery. Some measuring device causes extreme voltage fall. Recommend to use “Power Supply Unit（PS2032)”. |
⇒ Detail please look at “telemeasureII Catalog” P.2 & 4.
TelemeasureII Transmitter “TXG TEN”
TXG-TEN is transmitter where numeric keypad is mounted.
It transmits numeric data by Vectrix’s wireless format into TelemeasureII data receiver.
Other Products
1.Hand Switch “BS-3.5”
Use connected with Q-type transmitter TXG-□□Q.

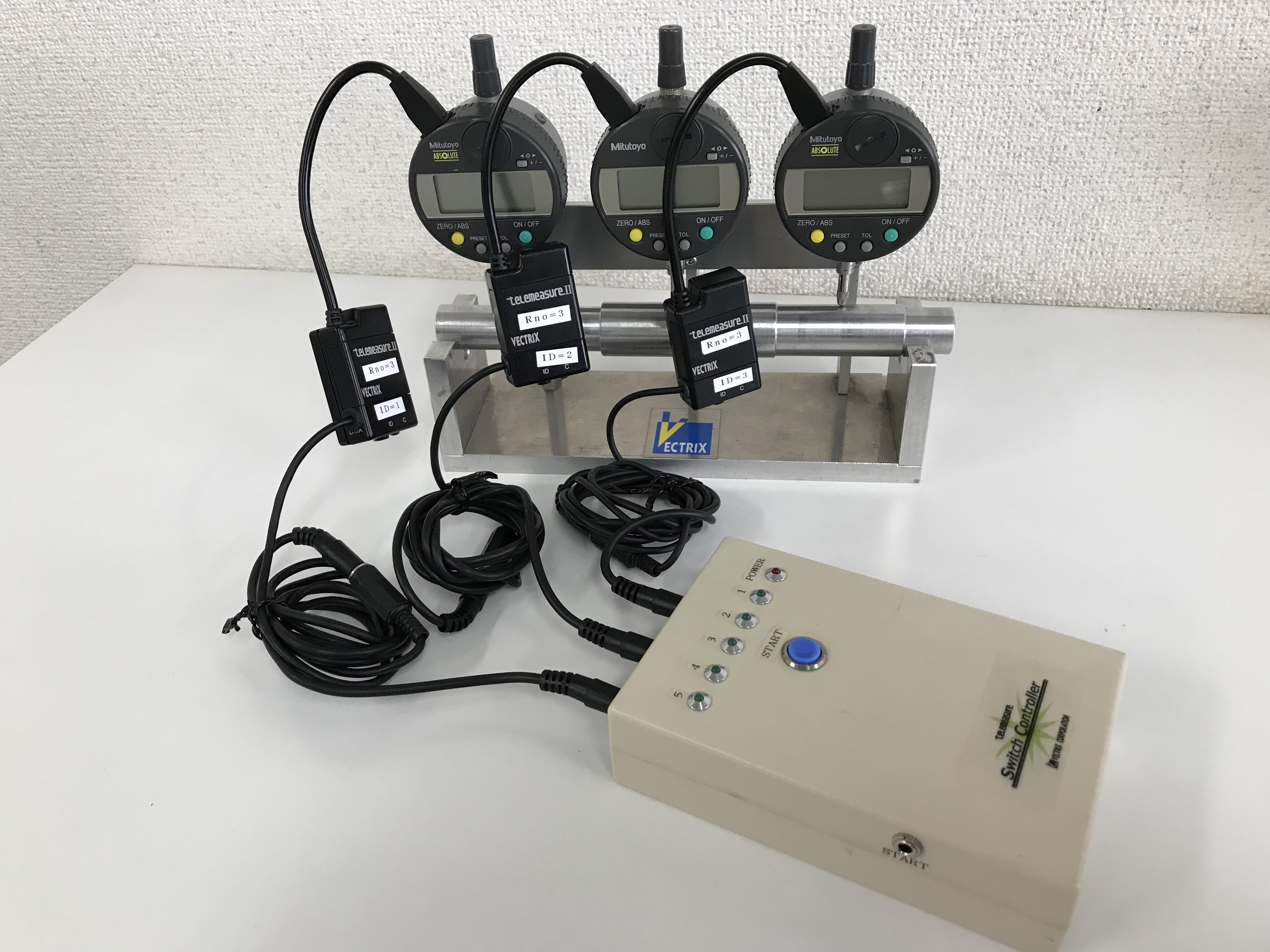

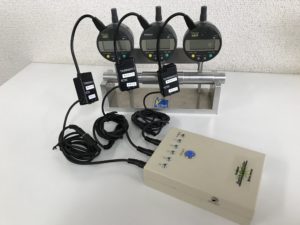

2.Switch Controller SWC-5,SWC-6 and so on(custom order)
Transmit measured data of maximum 5 or 6?transmitters sequentially with 0.5 second interval by one button. No power cable by using battery.

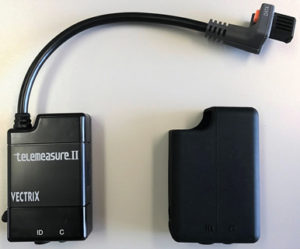

3.Rubber Cover for TelemeasureII Transmitter “TC-64”
Protect TelemeasureII Transmitter (TXG series) from oil adhered to hands or surrounding mist. (IP code：IP64)
4.Power supply set “PS2032”
Content of set AC adapter, Round board, Battery cap Instead of Lithium coin battery (CR2032) always supplies DC 3V voltage to transmitter TXG series.
5.OPT RS-232C Battery Box “ORS-3V”
Supply DC 3V power to OPT RS-232C output measuring instrument. When use transmitter for OPT RS-232C output measuring instrument, connect transmitter to the DSUB 9P female connector,
then connect measuring instrument to DSUB 9P male connector via. RS2332C cable designated by the instrument. Need to insert 2 size AA batteries.
